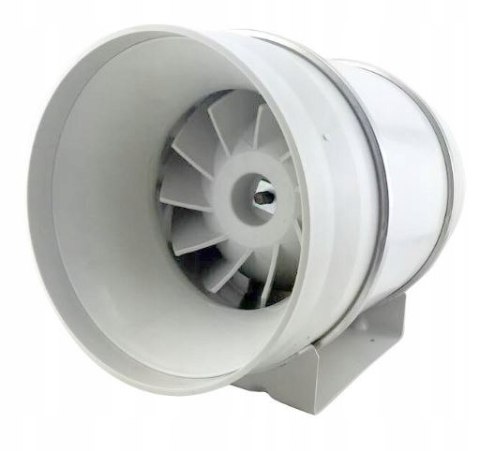

  • Duct fan TT ICM 200 840m3/h

The Symbol : 8994613878

ICM 200 duct fan from HAVACO, diagonal. Its unique design makes it possible to achieve high operating parameters with relatively low noise levels and low energy consumption. The fan housing is made of polypropylene, while the impeller is made of ABS plastic. Special connectors make it easy to assemble, disassemble and maintain the device. The device can be installed both horizontally and vertically.

379.00
opak Add to wishlist
Reviews
Shipping within 24 hours
Shipping price The Lack Of
The Availability Of Duża dostępność
The Weight Of The 3 kg
EAN 5904326322714

Phone order: +48606376838

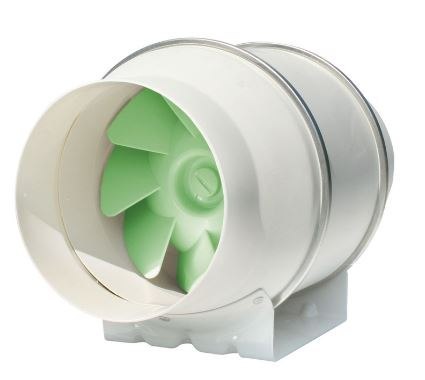

HAVACO ICM duct fan

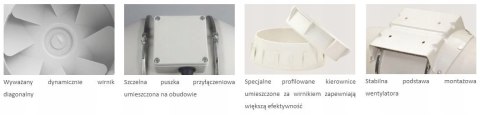

Construction

Duct fan, diagonal. Its unique design makes it possible to achieve high operating parameters with relatively low noise levels and low energy consumption. The fan housing is made of polypropylene, while the impeller is made of ABS plastic. Special connectors make it easy to assemble, disassemble and maintain the device. The device can be installed both horizontally and vertically.

Electric motor

Two-speed motor, powered by single-phase current 230V, 50Hz. Suitable for voltage regulation. IP 44 protection, insulation class B. The motor is equipped with durable ball bearings and thermal winding overload protection.

Use

The ICM fan is designed to transport low-pollution air. It is ideal for supply and exhaust installations of residential and public buildings, offices, shops. The device can also be used for exhaust installations from cooker hoods - the use of grease filters is required

Operating Temperature

The fan is designed to pump air with a temperature not exceeding 60 °C.

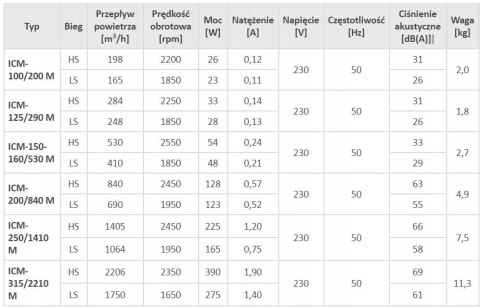

Specifications:

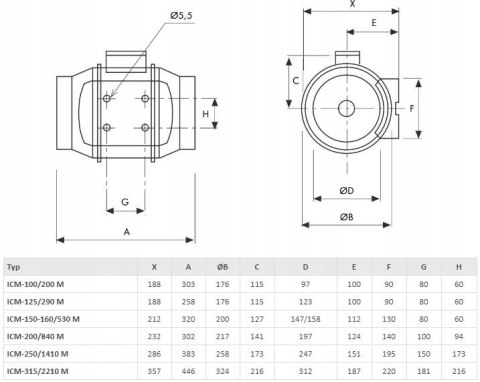

Fan Dimensions :

Dimensions X A ØB C ØD E F G H
ICM Ø100 188 303 176 115 97 100 90 80 60
ICM Ø125 188 258 176 115 123 100 90 80 60
ICM Ø150-160 212 320 200 127 147/158 112 130 80 60
ICM Ø200 232 302 217 141 197 124 140 100 94
ICM Ø250 286 383 258 173 247 151 195 150 173
ICM Ø315 357 446 324 216 312 187 220 181 216
Brand Havaco
Status New
Hole diameter 200 mm
Waga produktu z opakowaniem jednostkowym 2
Typ Duct fan
Packaging Condition oryginalne
Energy efficiency class A
